The sample is irradiated by an infrared beam, rapidly heating it.
The beam direction can be set to any orientation in the X, Y, and Z-axes.
The beam only irradiates the sample, providing point heating that does not heat the surroundings.
Models enabling heating from a 100 V power outlet are available (GA154/GA198).
Point heating of quartz tube-mounted samples that are placed in a magnetic field or spinning
Point heating of test samples for tensile testing or thermal shock testing
| Model name | GA154 | GVA198 | GA298 |
| Infrared lamp rating | 500W | 1kw | 2kW |
| Maximum attainable temperature | 1100°C | 1300°C | 1500°C |
| Heated surface area | dia14mm | dia 20mm | |
| Maximum heating rate | 100°C/sec | 100°C/sec | 150°C/sec |
| Atmosphere | In the air | ||
| Cooling water flow rate | 1L/min | 2L/min | |

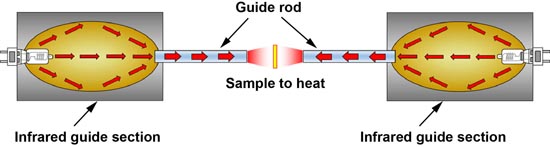

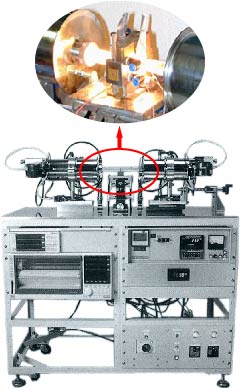

Systems that apply the rapid heating technologies used in Thermo Riko’s infrared guide heating systems. Enable destructive testing of disc-shaped test samples by irradiating both sides of the sample with infrared to apply thermal shock. Used for thermal shock testing of materials such as ceramics.
| Model name | TH4K | TH6K |
| Infrared lamp rating | 2kW×2 | 3kW×2 |
| Maximum attainable temperature | 1600°C | 1700°C |
| Sample size | dia 0mm~30mm×2mm | |
| Maximum heating rate | 100°C or less | |
| Cooling water flow rate | 2L/min | |
