Max. heating rate 150°C/second;
heating time: approximately one minute to attain the temperature of 1,500°C
No possibility of gas emissions or electromagnetic induction from the heat source.

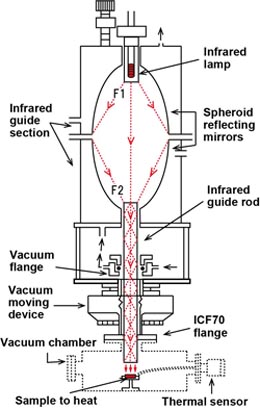

The infrared beam heats the sample only, not the surroundings.
Can be connected to various other equipment.
High-speed heating and annealing of materials such as Si and SiC
Generating oxide crystals and creating thin films in oxidizing atmospheres
Heating substrates in hydrogen and nitrogen atmospheres
Heating samples being irradiated by X-rays or UV beams

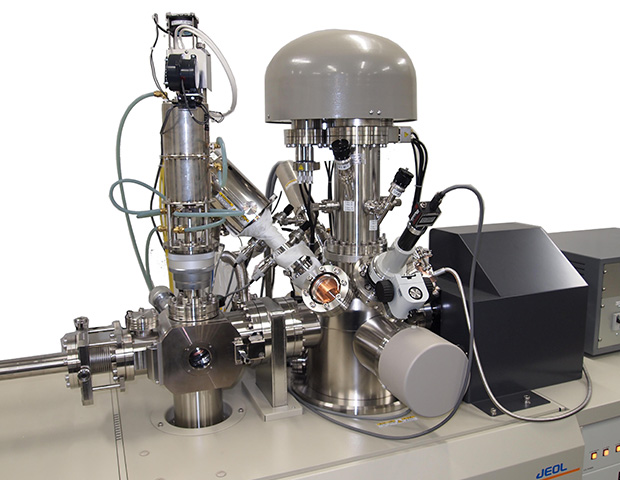

Heating samples in equipment such as thermal desorption spectroscopy systems or XPS/XRD/PLD analysis systems
Heating in the presence or absence of a magnetic field
Heating in pressurized atmospheres
Heating with a load applied to the sample
| Ultra-high vacuum models | Support ultra-high vacuum degree of up to 10–9 Pa. |
| High-speed heating models | Achieves rapid heating of max. heating rate 150°C/second. |
| Air heating models | Can spot-heat samples placed in an air atmosphere. |
| Pressurized atmosphere models | Can heat samples in pressure chambers at pressures of up to 10 atmospheres. |
| Special models | The best features of the GV Series can be applied to special models for high-speed cooling, stress heating, heating in magnetic fields, or various other applications. Contact Thermo Riko for information. |
| CE Marking | CE Marking models are also available. |
| Model name | GVH198 | GVH298 |
| Infrared lamp rating | 1kW | 2kW |
| Maximum attainable temperature | 1200°C | 1400°C |
| Heated surface area | dia 20mm | |
| Maximum heating rate | 1°C/sec | |
| Maximum attainable vacuum degree | 5×10–9Pa | |
| Cooling water flow rate | 1L/min | 2L/min |

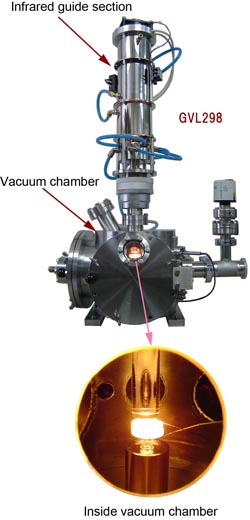

| Model name | GV154 | GV198 | GVL298 | GVL398 |
| Infrared lamp rating | 500W | 1kw | 2kW | 3kW |
| Maximum attainable temperature | 1100°C | 1300°C | 1500°C | 1600°C |
| Heated surface area | dia 14mm | dia 20mm | ||
| Maximum heating rate | 100°C/sec | 100~150°C/sec | ||
| Maximum attainable vacuum degree | 5×10–7Pa | |||
| Cooling water flow rate | 1L/min | 2L/min | ||
